JETPACK MODEL H202

rotate

Rotate

MODEL H202

Flight Time: 33 seconds
Range: 1320 FT
Top Speed: 80 mph /130 kph
Max Height: 196 FT
Max Pilot Weight: 180 lbs.
Machine weight: 125 lbs
Fuel: H2O2
Fuel Capacity: 4.3 gallons
Thrust: 300 lbs
Horsepower: 800
model

THRUST TUBE

The superheated steam and oxygen generated inside the engine flows through the thrust tubes to the nozzles.

model

THROTTLE

Precision engineered to meter fuel into the rocket engine. Controls ascent, hover, and descent thrust.

model

YAW CONTROL

Twisting the yaw control pivots the machine right and left. Aggressive maneuvers require precise coordination between throttle, yaw, and weight shift.

model

NOZZLE

Tuned for maximum thrust, the nozzles are where the hot gases escape at supersonic speed.

model

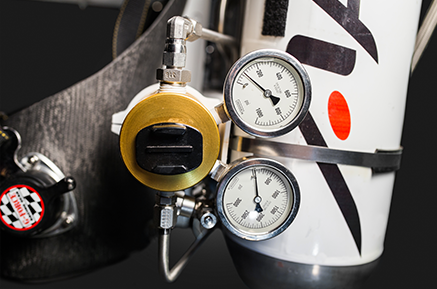

REGULATOR

Controls the nitrogen pressure as it pushes fuel from the fuel cells to the engine.

MODEL H202

Flight Time: 33 seconds
Range: 1320 FT
Top Speed: 80 mph /130 kph
Max Height: 196 FT
Max Pilot Weight: 180 lbs.
Machine weight: 125 lbs
Fuel: H2O2
Fuel Capacity: 4.3 gallons
Thrust: 300 lbs
Horsepower: 800
model

NITROGEN CELL

The high-pressure nitrogen flows from here into the fuel cells, and pushes the fuel into the engine.

model

ENGINE

The size of a coffee mug, fuel passes by a precious metal catalyst and expands to over 5000 times its original volume. The only byproducts are high-pressure steam and oxygen.

model

FUEL CELLS

Pressurized containment of 66 pounds of propellant-grade hydrogen peroxide.
